TUNELES

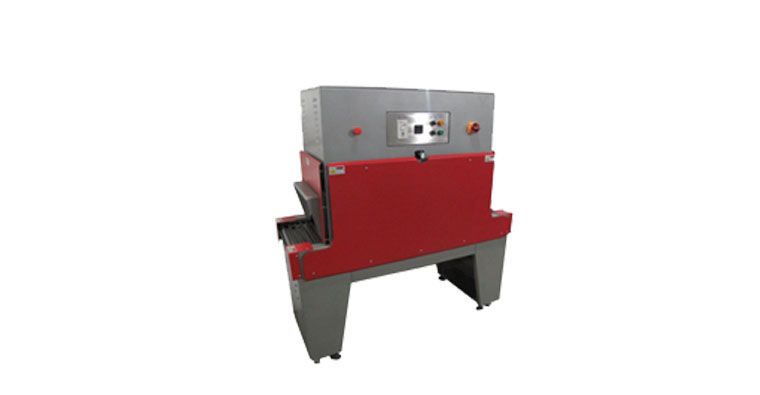

| Modelo | AP-180828 | AP-181044 | AP-4015T | AP-221244 |
|---|---|---|---|---|
| . | ||||
| Dimensiones Túnel(LxWxH) | 700x450x200 | 1100x450x250 | 600x400x150 | 1100x550x300 |
| Dimensiones Máquina (LxWxH) | 1050x700x1525 | 1550x700x1525 | 920x670x730 | 1550x750x1575 |
| Voltaje | 220V/3ph | 220V/3ph | 220V/3ph | 220V/3ph |
| Potencia (kw) | 8 | 9.5 | 4.5 | 12 |
| Peso máquina | 205 kg | 280 kg | 120 kg | 460 kg |

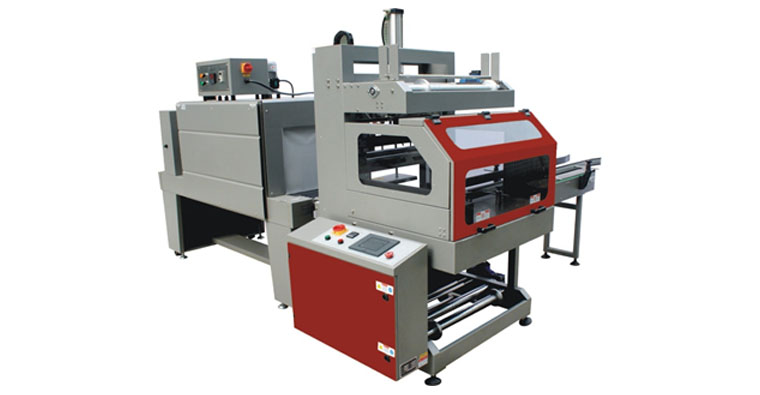

| Modelo | APT- 6040PE I |
APT- 6040PE II |
APT- 8040PE II |
APT- 10040PE II |
APT- 12540PE II |
|---|---|---|---|---|---|
| . | |||||
| Max. Ancho de Sello Width(mm) | 1200x600 x400 |
1800X600 X400 |
1800x800 x400 |
1800x1000 x400 |
1800x1250 x400 |
| Dimensiones Máquina (LxWxH) | 2200x970 x1600 |
2800X970 X1600 |
2800x1170 x1600 |
2800x1370 x1600 |
2800x1620 x1600 |
| Voltaje | 220/380V 3ph, 12kw |
220/380V 3ph, 18kw |
220/380V 3ph, 21kw |
220/380V 3ph, 30kw |
220/380V 3ph, 30kw |
| Velocidad faja transportadora (Max.) | 15M/min | 20M/min | 20M/min | 20M/min | 20M/min |
| Peso Máquina | 420 kg | 640 kg | 850 kg | 1000kg | 1200 kg |

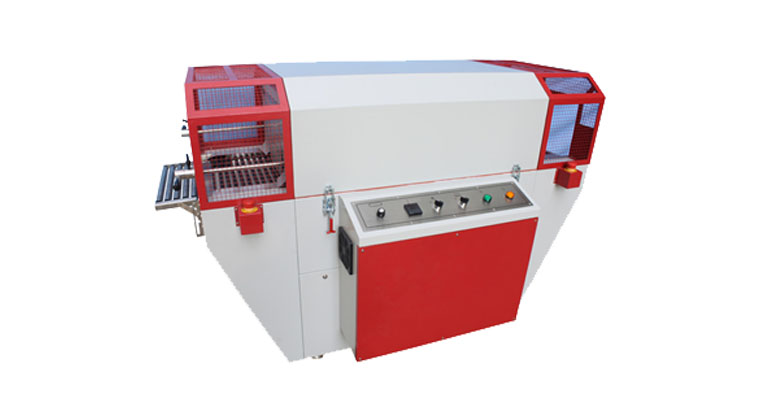

| Modelo | TLA-1040 |
|---|---|
| . | |
| Dimensiones Túnel | L 1000mm x W 400mm x H 250mm |
| Dimensiones Máquina | L 1600mm x W 960mm x H1206mm |
| Potencia requerida | 10KW |
| Voltaje | 380V, 3 ph, 60Hz, 16 A o 220V, 3 ph, 60Hz, 26A |
